AC220V Power Supply Swing Barrier Turnstile with IP46 Protection and 30-40 People/Minute Capacity
| 起源の場所 | 深セン、中国 |
|---|---|
| ブランド名 | Hongchuangwei |
| 証明 | CE/ISO 9001 |
| モデル番号 | CW421 |
| 最小注文数量 | 2個 |
| 価格 | 交渉可能 |
| パッケージの詳細 | 木製ケース |
| 受渡し時間 | 5～8営業日 |
| 支払条件 | T/T |
| 供給の能力 | 1日あたり100個 |
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 製品型式 | CW421 | 電源電圧 | AC220V |
|---|---|---|---|
| 作業環境温度 | -25℃〜70℃ | 相対湿度 | 97％ |
| IP保護レベル | 46 | 定格電力 | 25W |
| 障害のない動作時間 | 2百万回 | ランニング速度（xx人/分） | 30〜40人/分 |
| ハイライト | AC220V Power Supply Swing Barrier Turnstile,IP46 Protection Swing Turnstile Gate,30-40 People/Minute Pedestrian Swing Gate |
||
製品の説明

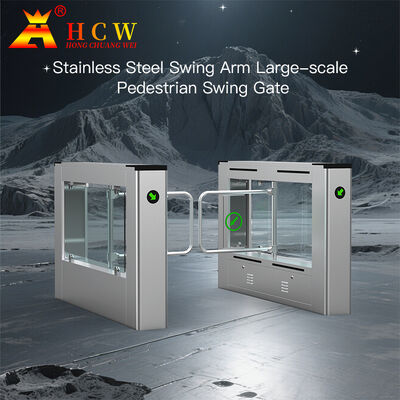

HCW Swing Barrier Turnstile with Brushless Motor & Infrared Anti-Pinch Safety
Pedestrian Swing Turnstile Barrier Gate with Face Recognition

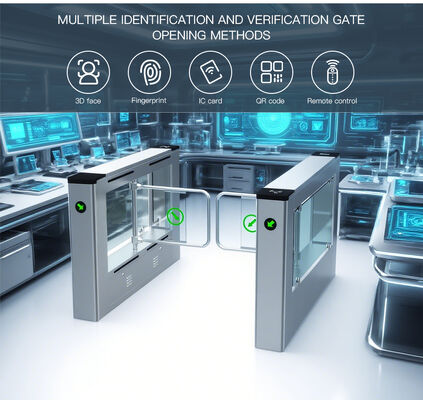

The CW421 is a high-performance anti-pinch swing turnstile gate featuring STC CPU chip technology and brushless motor operation. This versatile system supports multiple access methods including IC/ID card readers, facial recognition, fingerprint scanning, QR codes, and passport verification. Equipped with 6 pairs of infrared sensors for enhanced safety, it's ideal for office buildings, subways, schools, gyms, and other high-traffic areas.
Key Features
- Access control with audible/visual alarms for unauthorized entry attempts
- Configurable operation modes (always open/closed) with adjustable door wing speed
- Advanced anti-following tracking technology prevents unauthorized passage
- Safety rebound mechanism with motor cutoff when obstruction detected
- 120Nm impact-resistant automatic locking system
- Self-diagnostic system with alarms for intrusions, pinching, and tailgating
- Remote management capability with online/offline operation modes
- LED directional indicators display passage status
- Emergency power-off release allows free passage during outages
- Automatic reset function with configurable passage timing
Technical Specifications
| Product Model | CW421 |
|---|---|
| Motor Type | DC brushless motor |

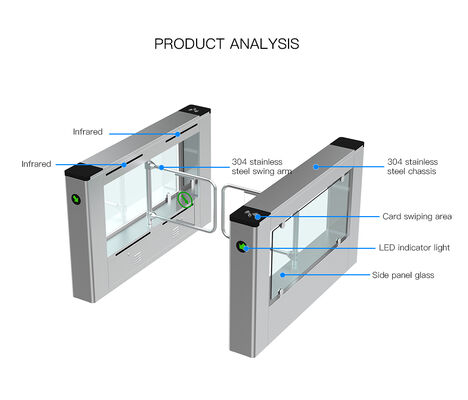

| Infrared Sensors | 6 pairs |
| Channel Width | 600-1100mm |
| Dimensions | 1560×220×990mm (L×W×H) |
| Weight | Approx. 68kg |
| Operating Humidity | ≤90% (non-condensing) |

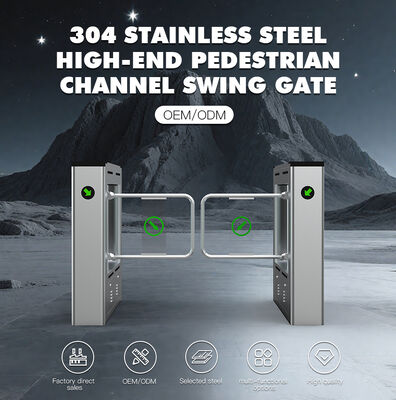

| Door Wing Material | Stainless steel pipe (standard) |
