HCW Wing Gate Turnstile with 40W DC Brushless Motor RS485/RS232 Interface and RS485/RS232 Interface Flap Barrier Turnstile
| 起源の場所 | 中国 |
|---|---|
| ブランド名 | HCW |
| 証明 | CE/ISO 9001 |
| モデル番号 | CW507 |
| 最小注文数量 | 2個 |
| 価格 | 交渉可能 |
| パッケージの詳細 | 木製ケース |
| 受渡し時間 | 5～8営業日 |
| 支払条件 | T/T |
| 供給の能力 | 1日あたり100個 |
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| Brand name | HCW | 製品型式 | CW507 |
|---|---|---|---|
| エンクロージャの材質 | 304ステンレス鋼 | 筐体サイズ | 1400*300*990mm |
| 保証 | 1年 | 証明書 | ISO9001/CE |
| 動作温度 | -25℃〜70℃ | モーター | 40W DCブラシレス |
| 通信インターフェース | RS485/RS232 | 赤外線ビーム | 4ペア |
| 通常の耐用年数 | 500万サイクル | 通過速度 | 30〜40人/分 |
| ハイライト | wing gate turnstile with DC brushless motor,wing gate turnstile with RS485 interface,flap barrier turnstile with RS232 interface |
||
製品の説明

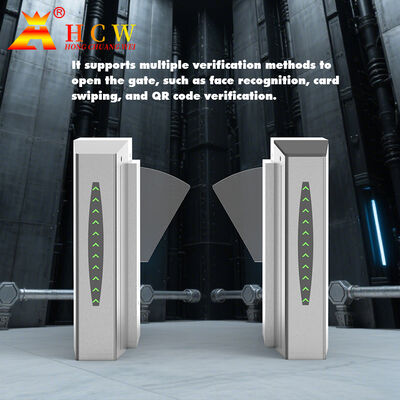

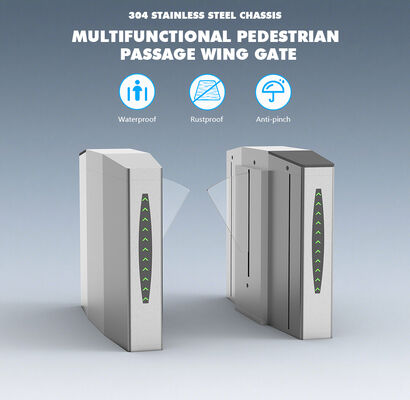

HCW Wing Gate Turnstile with 40W DC Brushless Motor
The HCW CW507 is a premium bidirectional flap barrier turnstile designed for high-traffic security applications. Featuring a rugged 304 stainless steel enclosure (1.2-1.5mm thickness), it ensures long-term durability in demanding environments. Powered by an efficient 40W DC motor system, it delivers smooth, maintenance-free operation while processing 30-40 people per minute - ideal for corporate offices, transport hubs, and secured facilities.
Key Features
- 304 stainless steel construction for maximum durability
- 40W DC motor for smooth, maintenance-free operation
- Processes 30-40 people per minute for high-traffic areas
- Supports RS485/RS232 interfaces for system integration
- 4-pair infrared beams for anti-tailgating protection
- Operates in extreme temperatures (-25℃ to 70℃)
- Compact 1400*300*990mm footprint
- 5 million cycle lifespan with 1-year warranty
- ISO 9001/CE certified
Specifications
| Brand Name | HCW |
|---|---|
| Product Model | CW507 |
| Enclosure Material | 304 stainless steel |
| Enclosure Size | 1400*300*990mm |
| Warranty | 1 Year |
| Certificate | ISO 9001/CE |
| Operating Temperature | -25℃~70℃ |
| Motor | 40W DC brushless |
| Communication Interface | RS485/RS232 |
| Infrared Beam | 4 pairs |
| Normal Service Life | 5 million cycles |
| Passage Speed | 30~40 people/minute |
| Thickness | 1.2~1.5mm |
Advantages
Enhanced Safety & Durability
304 stainless steel construction (1.2~1.5mm thickness) ensures high impact resistance and long-term reliability in high-traffic areas.
Smooth & Efficient Operation
40W DC brushless motor delivers fast, silent, and maintenance-free performance with a passage speed of 40 persons/min.
Secure & Intelligent Access Control
4 pairs of infrared beams for anti-tailgating detection, ensuring strict security compliance for offices, factories, and public facilities.
Weather & Dust Resistance
Dustproof and waterproof design capable of operating in extreme temperatures (-25°C to 70°C), ideal for both indoor and outdoor installations.
Certified & Cost-Effective
ISO 9001 and CE certified with 5-million-cycle lifespan and 1-year warranty, providing a high-quality yet budget-friendly solution.
Applications
- Office Buildings & Corporate Facilities: Ensures secure and efficient access control for employees and visitors with sleek stainless-steel design.
- Public Transport & High-Traffic Areas: Manages crowd flow in metro stations, airports, and stadiums with 40 persons/min processing capability.
- Factories & Restricted Zones: Provides strict access control for industrial sites with infrared sensors to prevent tailgating.
